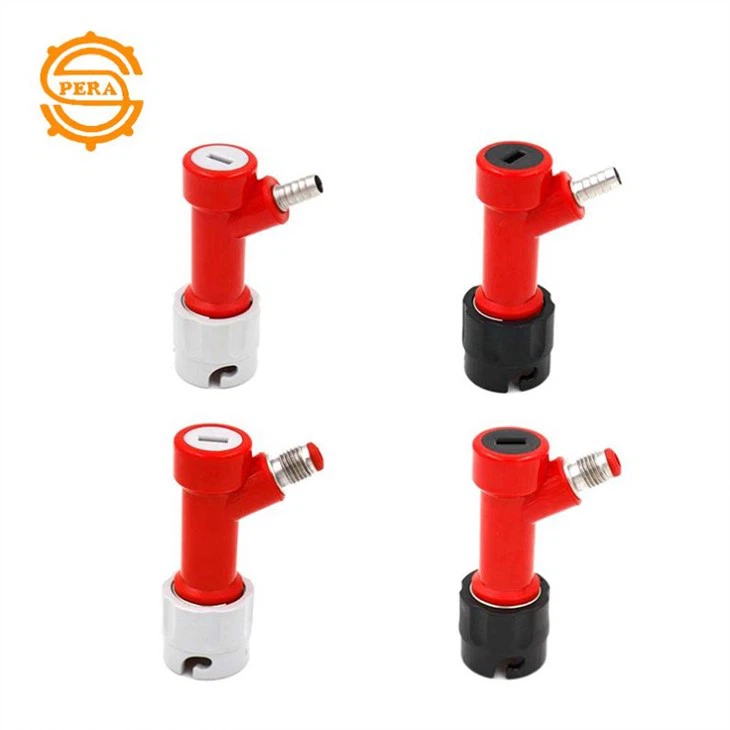

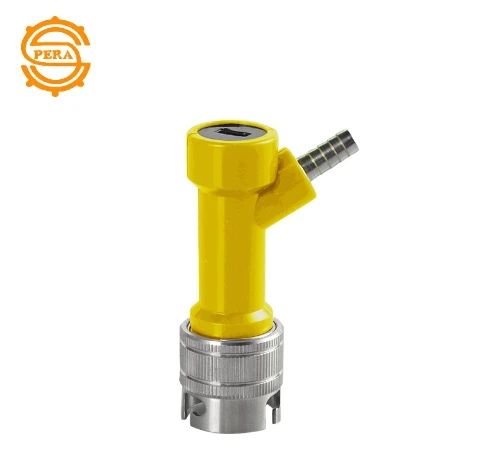

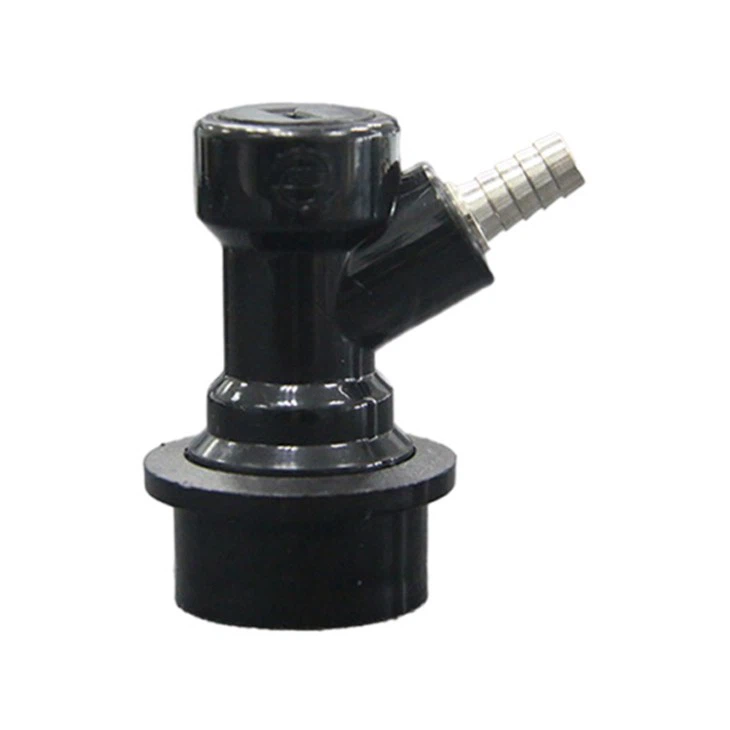

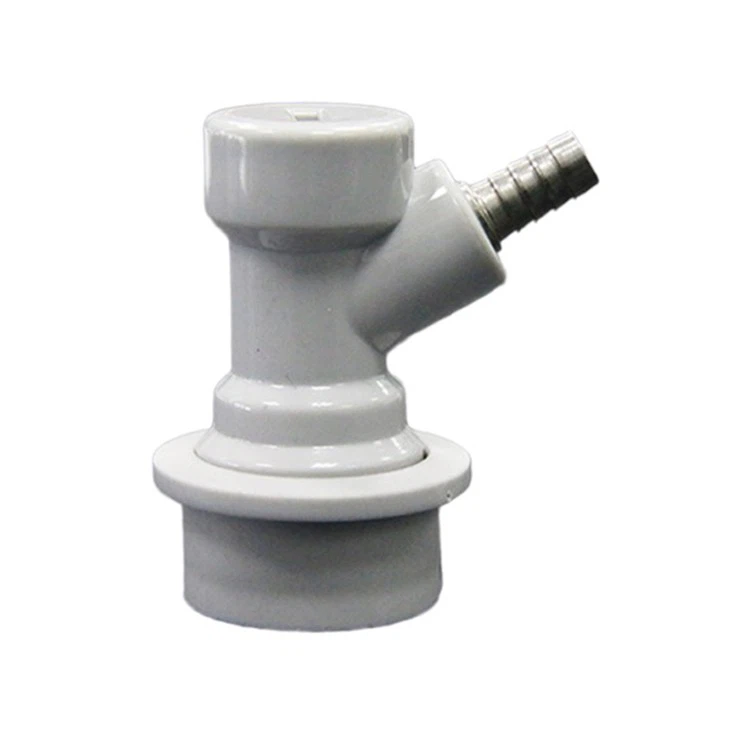

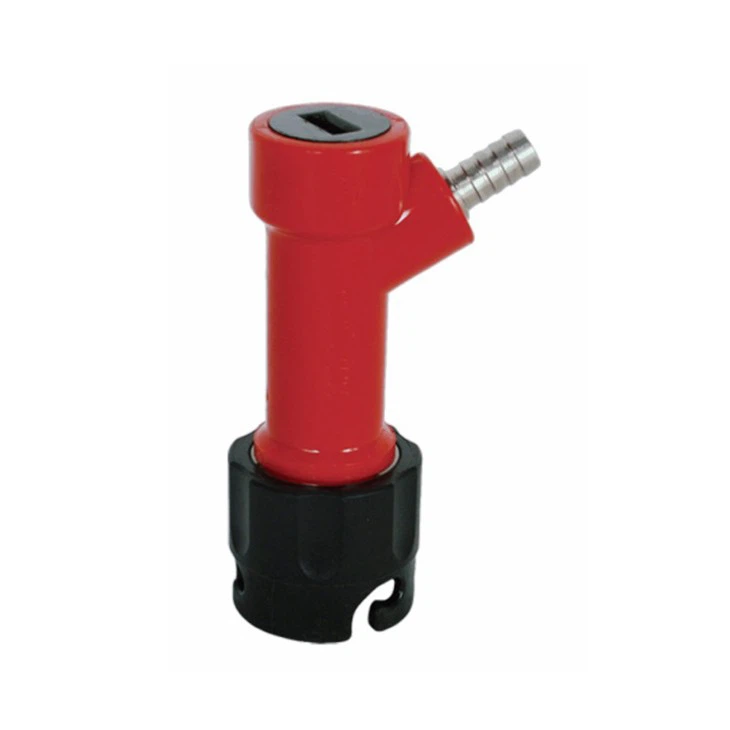

Keg Connect

quick connector is a special connector for brewing equipment that can connect or disconnect pipelines without tools. Quick connectors can be divided into gas quick connectors and liquid quick connectors. Specially used for mini bucket and mini bucket set







Open and closed at both ends, open at both ends, single circuit open and closed.



Both ends open and close

When not connected: when the ferrule of the parent body moves to the other end, the stainless steel bead automatically rolls outward, and the daughter body is disconnected under the action of the joint valve spring force of the parent body and the daughter body, and the valves of the daughter body and the parent body are respectively closed, instantly blocking the fluid flow.

When connecting: when the daughter body is inserted into the parent body, the ferrule returns to its original position under the action of the spring, the steel ball rolling locks the daughter body tightly, and the valves of the parent body and the daughter body push each other to open, so that the fluid flows. The O-ring can completely block the fluid leakage.



Open at both ends

No link: when the ferrule of the parent body is pushed to the other end, the steel ball automatically rolls outward, so the daughter body is moved out; Since neither daughter nor parent has a valve, the fluid flows out.

When connecting: when the daughter body is inserted into the parent body, the ferrule is pushed to the previous position by the force of its spring, causing the steel ball to lock and the fluid to flow. The O-ring is used to prevent liquid leakage.



Single circuit opening and closing

No link: when the ferrule of the parent body moves to the other end, the stainless steel bead automatically rolls outward, and the daughter body is bounced off by the reaction force of the valve spring, and the valve can automatically close to block the fluid flow.

When connecting: when the daughter body is inserted into the side of the parent body with ferrule, the valve is opened to cause fluid flow, the gasket is pushed back to its original position by the force of the spring, the stainless steel bead will be locked to ensure the connection between the daughter body and the parent body, and the gasket inside can completely block the fluid leakage.







Exchange function: pneumatic, hydraulic Test function: vacuum, withstand voltage, leakage, operation, etc. Filling function: CO₂









Time and labor saving

when the oil circuit is disconnected and connected through the quick coupling, the action is simple, saving time and manpower.

Fuel saving

when the oil circuit is broken, the one-way valve on the quick coupling can close the oil circuit, and the oil will not flow out, so as to avoid the loss of oil and oil pressure.

Environmental protection

When the quick coupling is broken and connected, the oil will not spill, so as to protect the environment.

The equipment is divided into parts, which is convenient for transportation

large equipment or hydraulic tools that need to be easy to carry can be disassembled and transported with quick couplings, and then assembled for use after arriving at the destination.

Economy

All the above advantages have created economic value for customers.
