Keg Coupler

keg coupler is a valve with intake function. When keg coupler is opened, beer can come out of the keg. After keg coupler is closed, the liquor can not come out or return.

keg coupler is divided into plate type keg coupler(A-type keg coupler，G-type keg coupler) and well type keg coupler (D-type keg coupler, S-type keg coupler).It can be made of stainless steel as a whole or brass as the main body. All parts in contact with wine are made of food grade stainless steel.





Exquisite Material Selection

Keg coupler is novel and unique. It adopts electroplating process. All parts contacting wine are made of food grade stainless steel. The main body can also be made of brass. It will not wear and tear with the passage of time, and will not be broken like the connector of chrome keg. It can improve durability and chemical resistance.Academic nature. The probe has the maximum durability and hygiene, with high purity, and can be used in beer, wine and cider, NSF certified food grade seals, European food grade lubricants, which can be eaten directly.

Variety

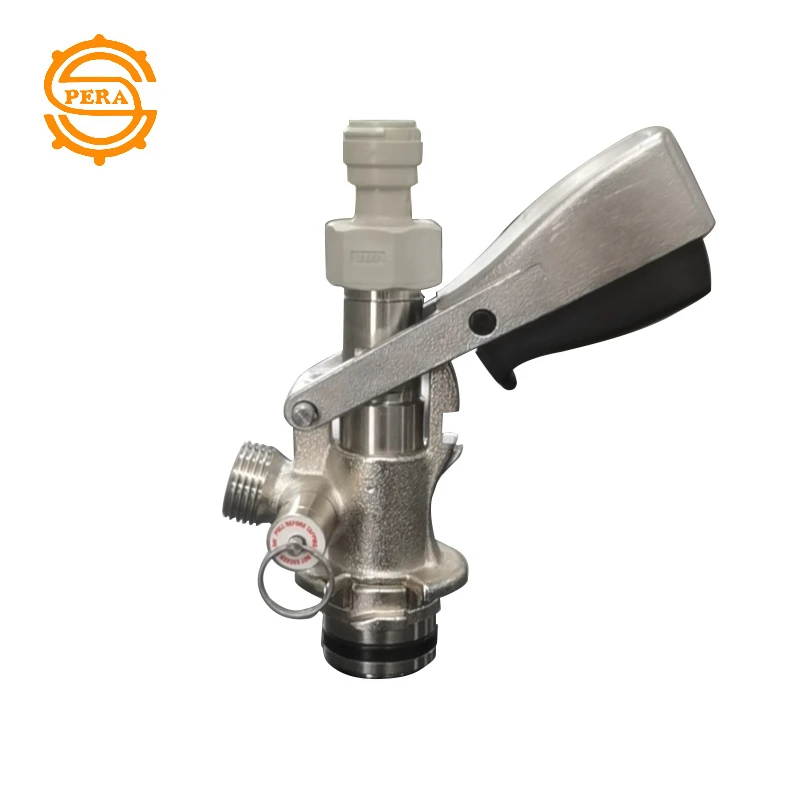

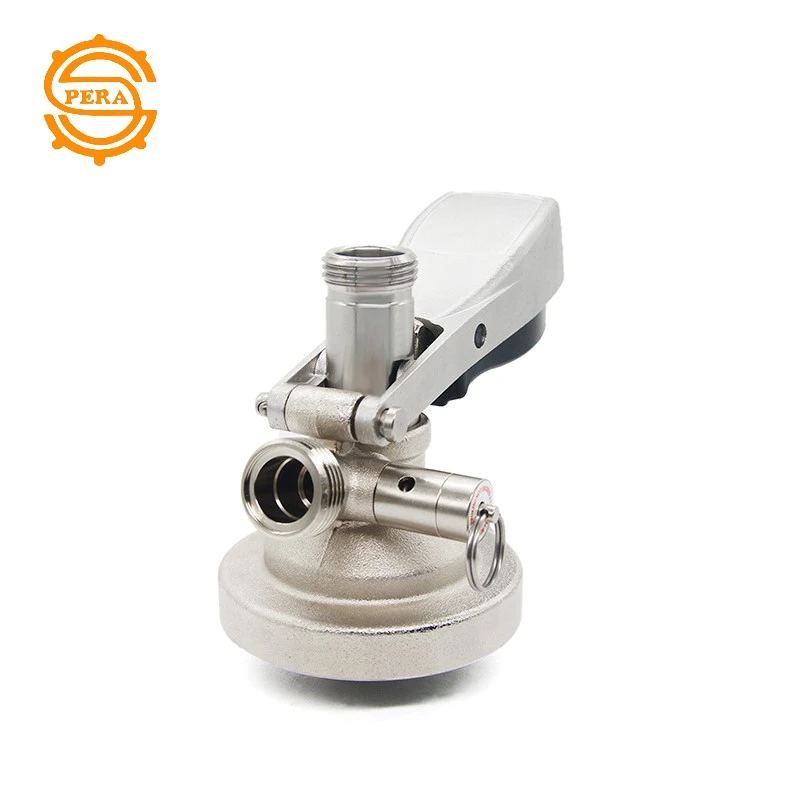

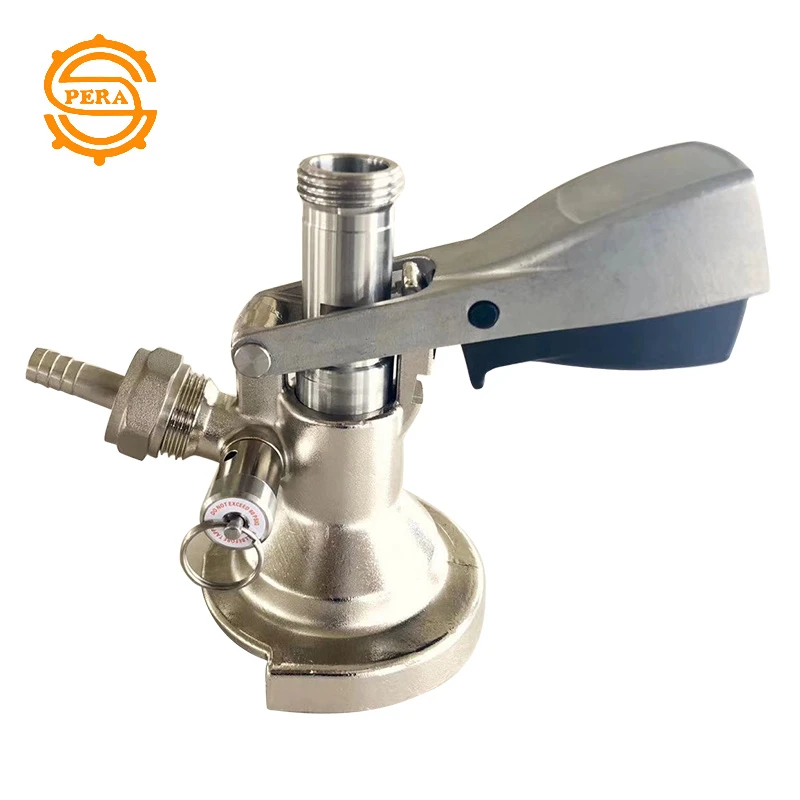

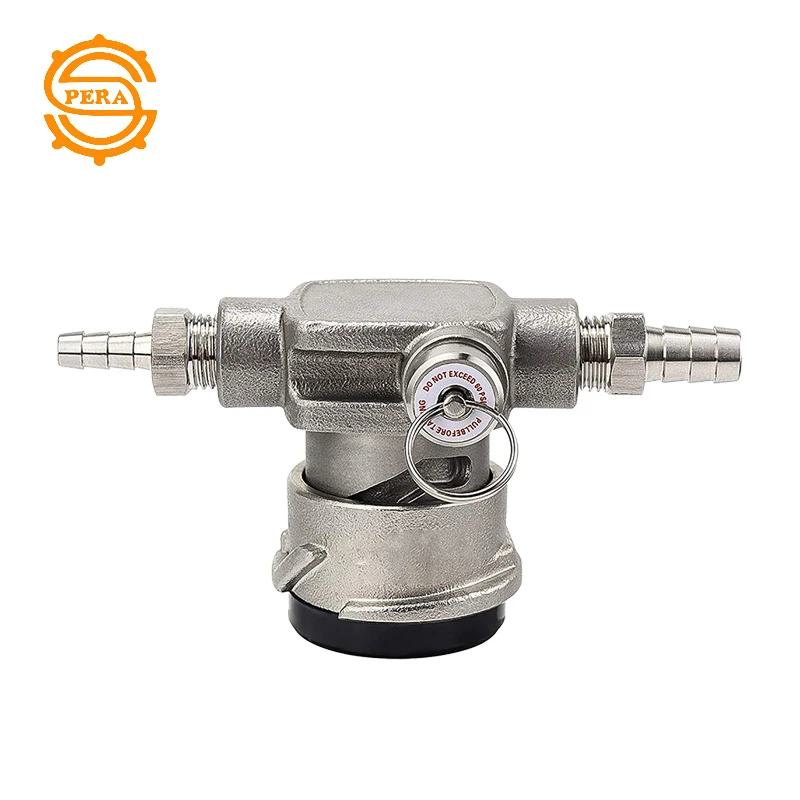

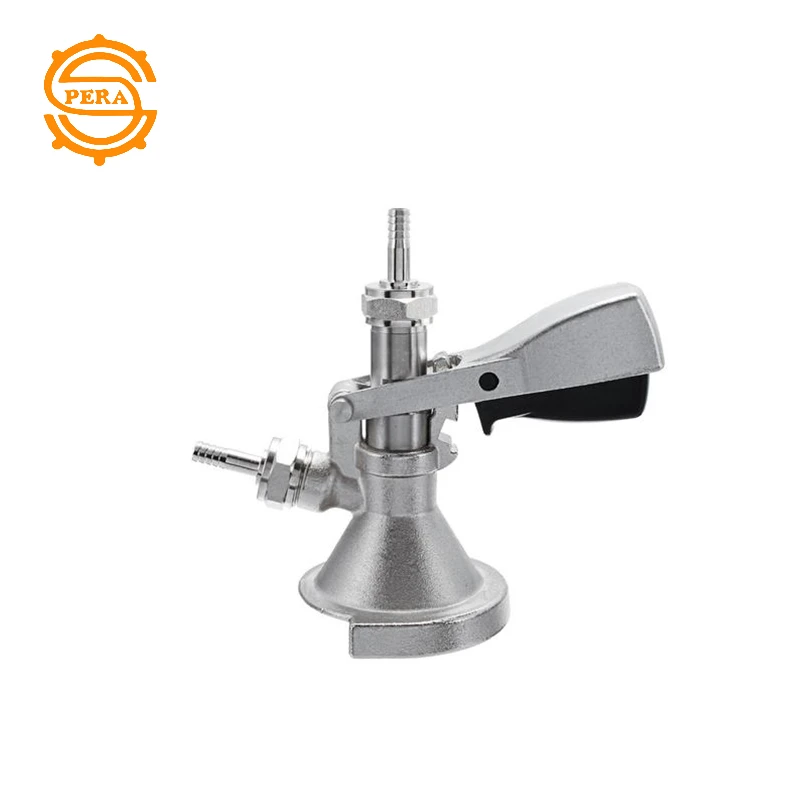

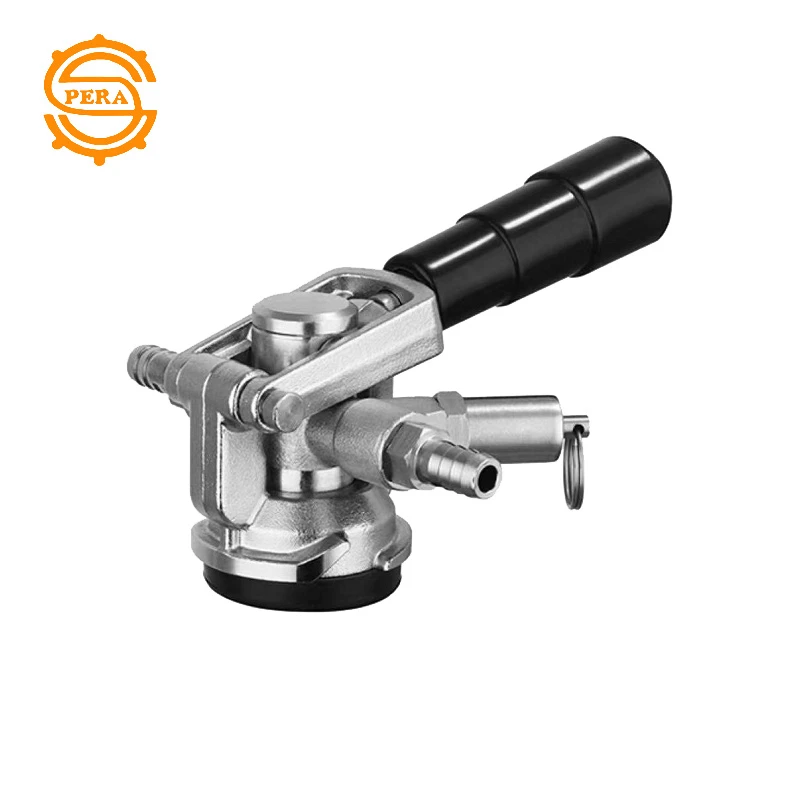

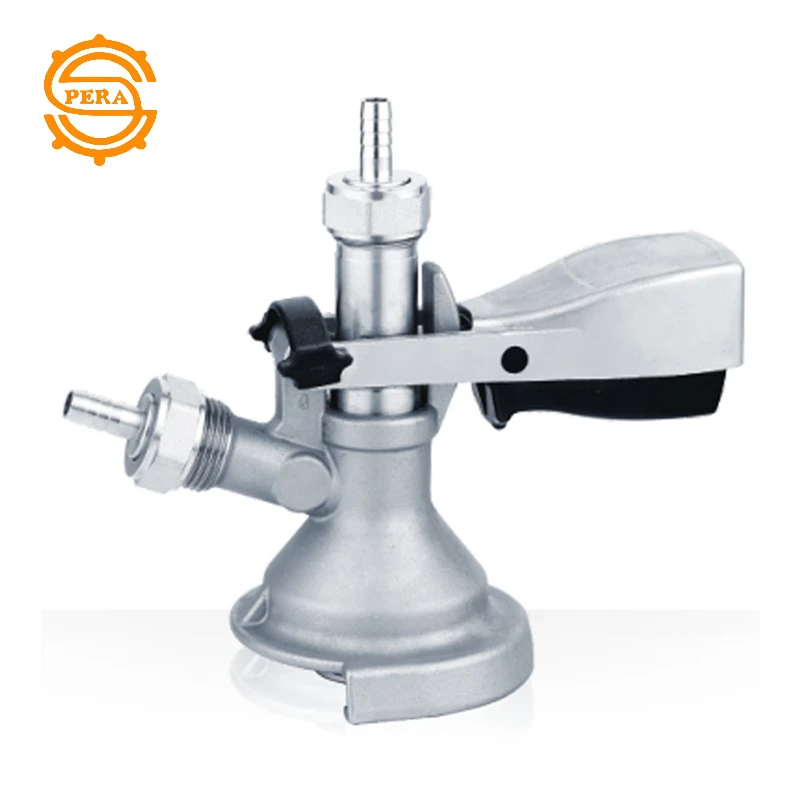

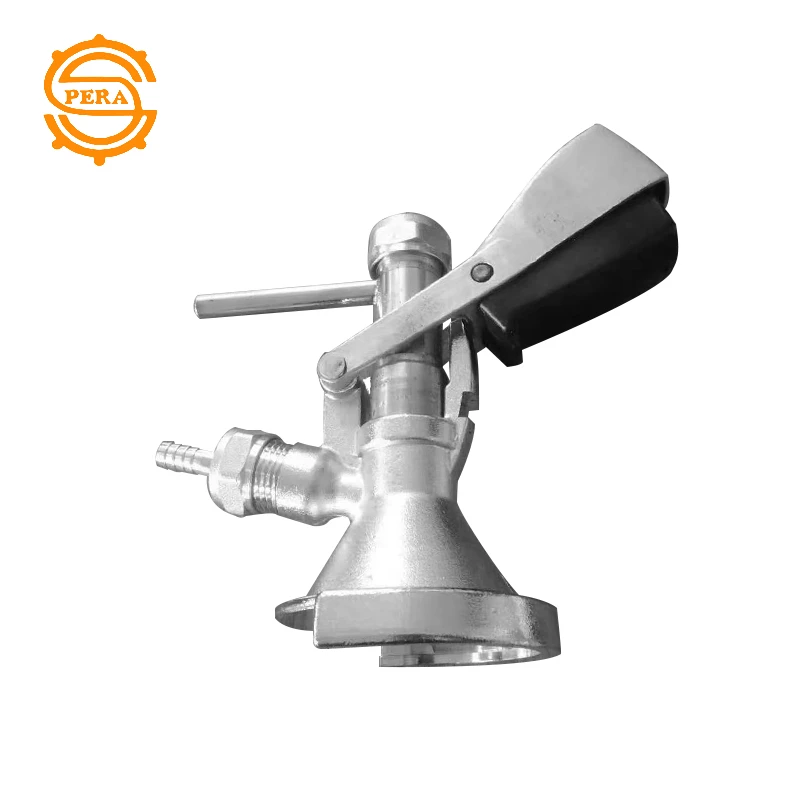

Keg coupler is divided into plate type keg coupler (A-type keg coupler, G-type keg coupler) and well type keg coupler (D-type keg coupler and S-type keg coupler). The bottom of the plate keg coupler is a bell mouth, which is relatively large, and has a plane matching with the plate wine spear; the bottom of A-type valve body has a semicircular notch,For horizontal push installation, the bottom of G-type valve body is a complete circle, with 3 trimming edges inside, which is installed vertically and fixed by rotation. The bottom of the well type keg coupler should be smaller, and the rubber ring will be outside. The protruding probe of the well keg coupler will match the well type wine spear. The S-type probe is relative to the D-type probe.The probe will be more prominent.

Various Sizes

There are two sizes of outlet and inlet of keg coupler, which are 1 / 2 "and 5 / 8", silver and brass. The size of barb of air inlet is usually 7.3mm/8mm/10mm, which can also be customized according to requirements. The outlet accessory barb can be made into upright or 90°.The handle can be either a pull handle or a press type handle (at present, only D and s can be made into a lifting handle). You can also connect keg post at the water outlet, and then insert our matching product ball lock disconnect to increase the height of keg coupler for easy disassembly.The main body can also be equipped with or without exhaust.

Safety and Health

304 stainless steel beer pipe is adopted to increase service life, which does not affect the taste and temperature control is reliable. The liquor outlet temperature is stable, easy to install, easy to clean and durable. It can bear 4-6kg pressure.





The punch pin of the keg coupler can be matched with the corresponding liquor wool, the liquor wool is connected to the beer keg, the water outlet of the keg coupler can be connected to the barb, ball lock disconnect, or the party pump. If the handle is of the press type, the liquor can be released by pressing; if the handle is of the pull-out type, it needs to be pulled. specific.













Keg coupler is a revolutionary product designed to simplify the task of tapping kegs. It is a highly versatile and easy-to-use device that is suitable for a wide range of applications.

The product is ideal for use in bars, restaurants, pubs, and other food and beverage establishments that serve draft beer. With its user-friendly design, Keg coupler makes it possible to tap kegs quickly and efficiently, saving time and effort for bartenders and staff.

Keg coupler is also ideal for use in home kegerators, making it easy and convenient for beer enthusiasts to enjoy their favorite brews from the comfort of their own homes.

Overall, Keg coupler is a must-have product for anyone who serves or enjoys draft beer. Its simple yet effective design, combined with its versatility and ease of use, makes it the perfect addition to any establishment or home setup.
